You can’t collect solar power at night. Well, at least not on Earth. Since it’s Space Week, we thought it'd be appropriate to look at one promising, but futuristic, idea that could change the face of solar power generation: Space-Based Solar Power (SBSP). While the Energy Department is not actively researching SBSP, we hope you’ll take a moment to learn about this far out concept.

The idea of capturing solar power in space for use as energy on Earth has been around since the beginning of the space age. In the last few years, however, scientists around the globe -- and several researchers at the Energy Department’s own Lawrence Livermore National Laboratory (LLNL) -- have shown how recent technological developments could make this concept a reality.

On earth, solar power is greatly reduced by night, cloud cover, atmosphere and seasonality. Some 30 percent of all incoming solar radiation never makes it to ground level. In space the sun is always shining, the tilt of the Earth doesn't prevent the collection of power and there’s no atmosphere to reduce the intensity of the sun’s rays. This makes putting solar panels into space a tempting possibility. Additionally, SBSP can be used to get reliable and clean energy to people in remote communities around the world, without relying on the traditional grid to a large local power plant.

How does it work?

Self-assembling satellites are launched into space, along with reflectors and a microwave or laser power transmitter. Reflectors or inflatable mirrors spread over a vast swath of space, directing solar radiation onto solar panels. These panels convert solar power into either a microwave or a laser, and beam uninterrupted power down to Earth. On Earth, power-receiving stations collect the beam and add it to the electric grid.

The two most commonly discussed designs for SBSP are a large, deeper space microwave transmitting satellite and a smaller, nearer laser transmitting satellite.

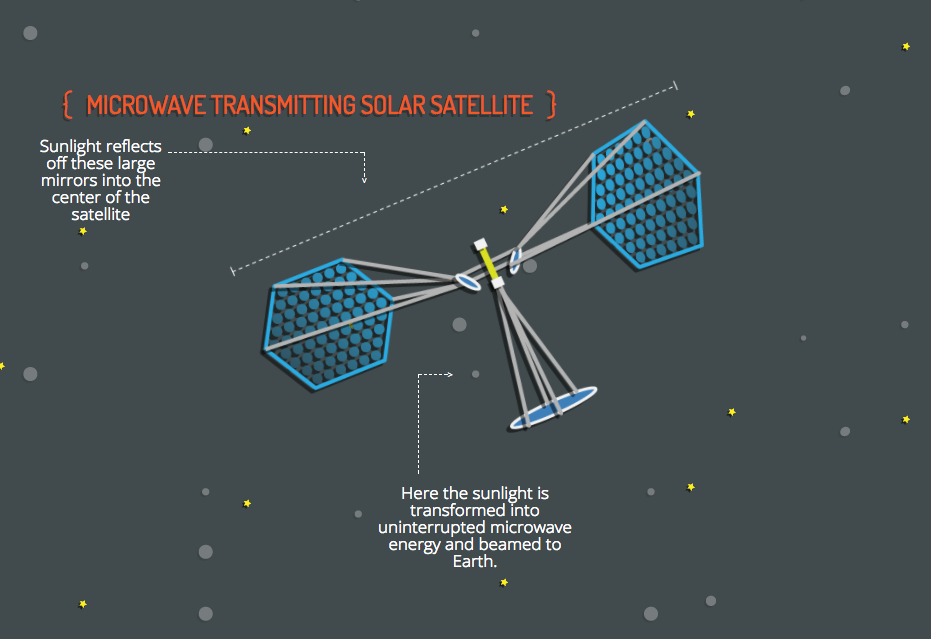

Microwave Transmitting Satellites

Microwave transmitting satellites orbit Earth in geostationary orbit (GEO), about 35,000 km above Earth’s surface. Designs for microwave transmitting satellites are massive, with solar reflectors spanning up to 3 km and weighing over 80,000 metric tons. They would be capable of generating multiple gigawatts of power, enough to power a major U.S. city.

The long wavelength of the microwave requires a long antenna, and allows power to be beamed through the Earth’s atmosphere, rain or shine, at safe, low intensity levels hardly stronger than the midday sun. Birds and planes wouldn’t notice much of anything flying across their paths.

The estimated cost of launching, assembling and operating a microwave-equipped GEO satellite is in the tens of billions of dollars. It would likely require as many as 40 launches for all necessary materials to reach space. On Earth, the rectenna used for collecting the microwave beam would be anywhere between 3 and 10 km in diameter, a huge area of land, and a challenge to purchase and develop.

Laser Transmitting Satellites

Laser transmitting satellites, as described by our friends at LLNL, orbit in low Earth orbit (LEO) at about 400 km above the Earth’s surface. Weighing in in at less than 10 metric tons, this satellite is a fraction of the weight of its microwave counterpart. This design is cheaper too; some predict that a laser-equipped SBSP satellite would cost nearly $500 million to launch and operate. It would be possible to launch the entire self-assembling satellite in a single rocket, drastically reducing the cost and time to production. Also, by using a laser transmitter, the beam will only be about 2 meters in diameter, instead of several km, a drastic and important reduction.

To make this possible, the satellite’s solar power beaming system employs a diode-pumped alkali laser. First demonstrated at LLNL in 2002 -- and currently still under development there -- this laser would be about the size of a kitchen table, and powerful enough to beam power to Earth at an extremely high efficiency, over 50 percent.

While this satellite is far lighter, cheaper and easier to deploy than its microwave counterpart, serious challenges remain. The idea of high-powered lasers in space could draw on fears of the militarization of space. This challenge could be remedied by limiting the direction that which the laser system could transmit its power.

At its smaller size, there is a correspondingly lower capacity of about 1 to 10 megawatts per satellite. Therefore, this satellite would be best as part of a fleet of similar satellites, used together.

You could say SBSP is a long way off or pie in the sky (puns intended) -- and you'd largely correct. But many technologies already exist to make this feasible, and many aren't far behind. While the Energy Department isn't currently developing any SBSP technologies specifically, many of the remaining technologies needed for SBSP could be developed independently in the years to come. And while we don't know the future of power harvested from space, we are excited to see ideas like this take flight (okay last pun, I promise).
